The Pinecrest – 2-Bedroom ADU Plan

The Pinecrest ADU Plan is a thoughtfully designed 790-square-foot, 2-bedroom, 1-bath accessory dwelling unit with an open-concept living space, vaulted ceiling, and generous covered porch. Designed for backyard ADUs, guest houses, rental cottages, and small infill homes, this single-story plan combines efficient space planning with a warm modern-cottage aesthetic.

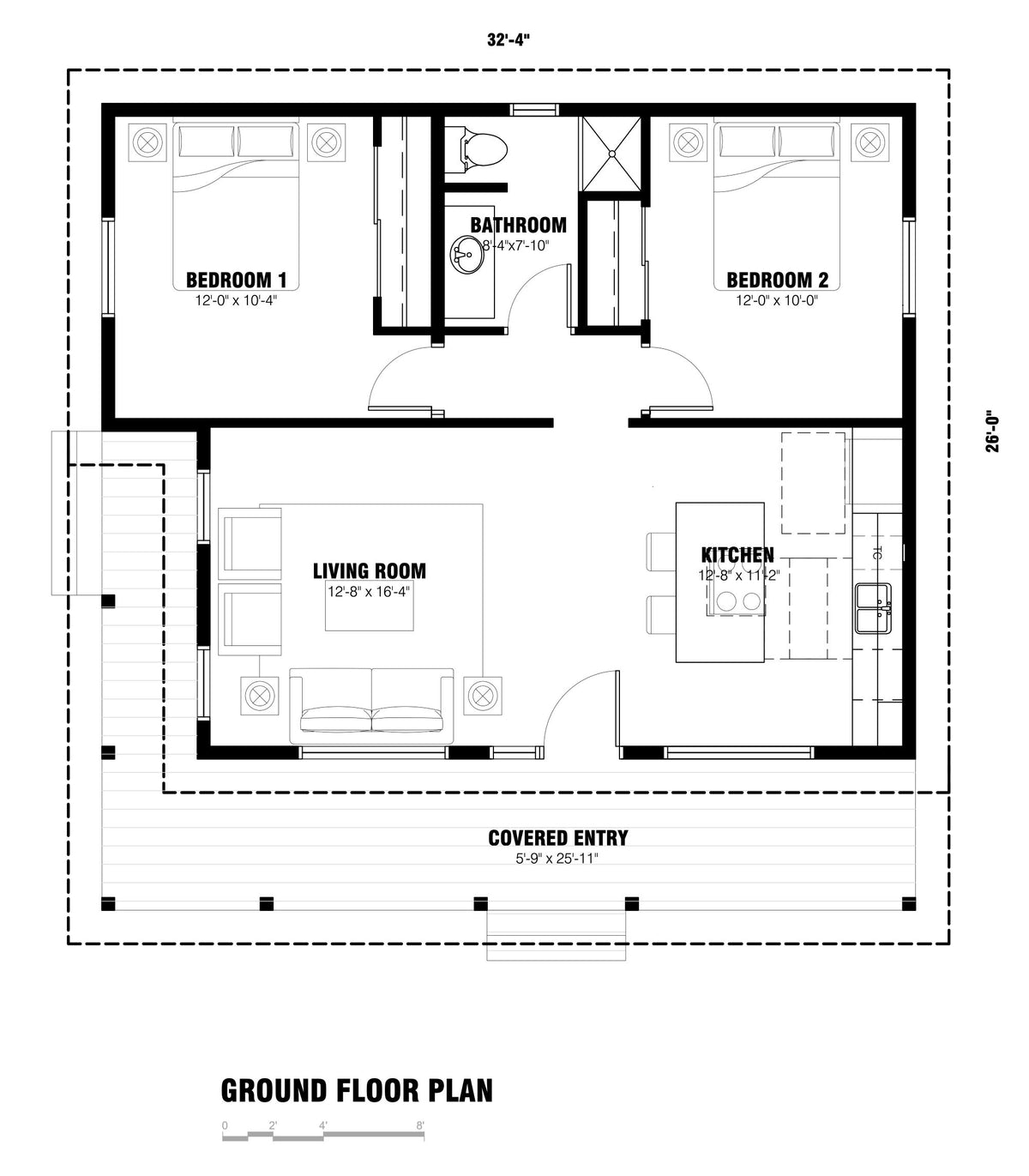

Inside, the layout centers on a bright living room and kitchen with a large island, creating an open and functional main living area that feels larger than its footprint. Two private bedrooms are located at the back of the home, with a centrally placed full bathroom for easy access. Large windows bring natural light into the home, while the simple rectangular footprint and straightforward roof form support cost-conscious construction.

On the exterior, the Pinecrest features vertical siding, a gable roof with standing-seam metal roofing, and a wide covered porch that enhances curb appeal and expands the usable living space outdoors. This plan is well suited for homeowners, builders, and investors looking for a compact 2-bedroom ADU plan under 800 square feet that still feels spacious, welcoming, and highly buildable.

What's Included in This Plan Set

• • Architectural Construction Details — Typical wall, roof, floor, foundation, eave, opening, flashing, and other construction details necessary to communicate the design and intended construction.
  • Structural Foundation Plan — Foundation layout showing footings, foundation walls, slabs, posts, beams, and other primary structural components.
  • Structural Framing Plans — Floor and roof framing information showing joists, rafters, beams, headers, posts, bearing locations, and other structural framing elements.
  • Structural Details — Typical structural connections, framing conditions, foundation details, and other information necessary to support construction and permit review.
  • Schematic Electrical Plan — Electrical layout showing typical lighting, switches, receptacles, smoke and carbon monoxide alarms, and other common residential electrical locations for permitting and coordination.
  • Site Plan Template — A blank site plan diagram sized for the intended lot configuration. Your local surveyor, designer, architect, or civil engineer can use the template to add property lines, setbacks, utilities, topography, driveway locations, and other site-specific information.
  • General Construction Notes — Typical construction requirements, material references, installation standards, and code-related notes applicable to the building.
  • Energy Compliance Notes — General energy-efficiency requirements and construction notes intended to assist with compliance in many U.S. jurisdictions. Project-specific energy calculations or local compliance documentation may still be required.
  • Life-Safety and Code Information — Typical residential code information addressing items such as egress, safety glazing, smoke alarms, carbon monoxide alarms, guards, handrails, and other common code requirements where applicable.
  • Door and Window Information — Sizes, types, locations, and related information necessary for coordination and construction, where included in the plan design.
  • Drawing Organization — Drawings are professionally organized into a coordinated architectural and structural plan set suitable as the basis for local permit submission. Information will need to be added to meet local compliance.
  • Print-Quality PDF Files — High-resolution PDF drawings formatted on 24" × 36" sheets, a standard architectural sheet size accepted by most e-permitting systems and print shops and commonly used for residential permit submissions.
  • Immediate Digital Delivery — PDF files are available for download immediately after checkout so you can begin reviewing, pricing, printing, or preparing your project for permitting.

Plan Specifications Table

What is the Pinecrest ADU Plan?
The Pinecrest is a 790-square-foot, 2-bedroom, 1-bath ADU and small-house plan designed for efficient living on compact lots.

How many bedrooms does the Pinecrest have?
The plan includes 2 bedrooms and 1 full bathroom.

Is this a good ADU plan for a backyard or infill lot?
Yes. The Pinecrest is designed to work well as a backyard ADU, guest house, rental unit, or compact primary home.

Does the Pinecrest have an open-concept layout?
Yes. The home features an open living room and kitchen layout with a central island and vaulted main space.

What style is the Pinecrest ADU Plan?
It has a modern cottage / modern farmhouse character with a simple gable roof, vertical siding, and a covered porch.
