The Irving Plan | 3 Bedroom • 2.5 Bath • 1-Car Garage • Narrow-Lot Design

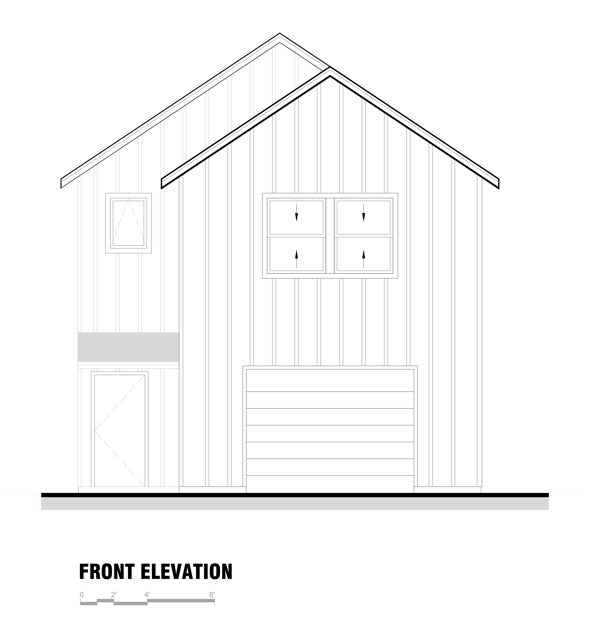

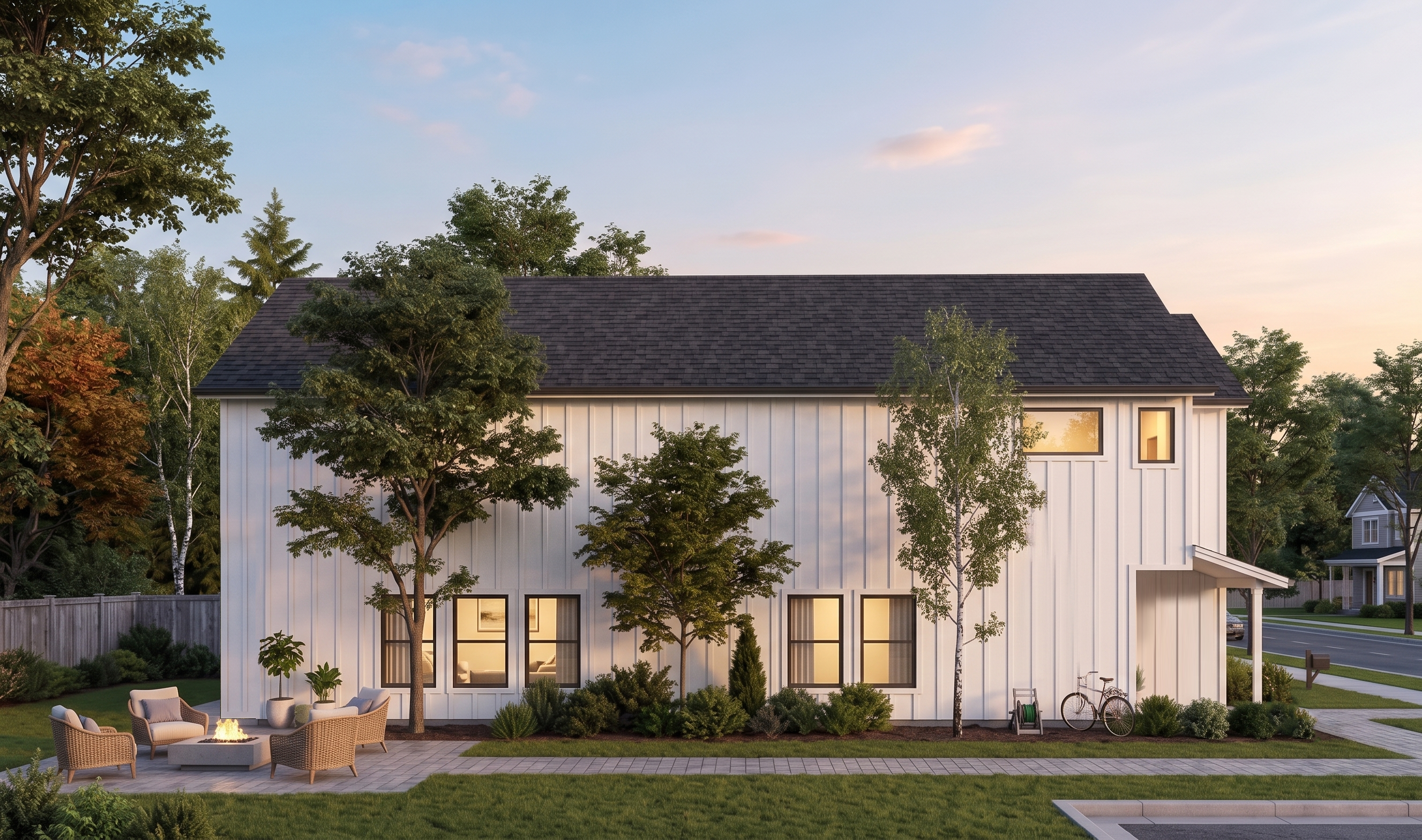

The Irving is a 2,208-square-foot, 3-bedroom, 2.5-bath modern farmhouse house plan designed for narrow lots, offering two-story living within an efficient 24-foot-wide footprint. Its clean modern farmhouse exterior combines board-and-batten siding, simple gable forms, and a contemporary garage elevation for a distinctive but highly buildable design.

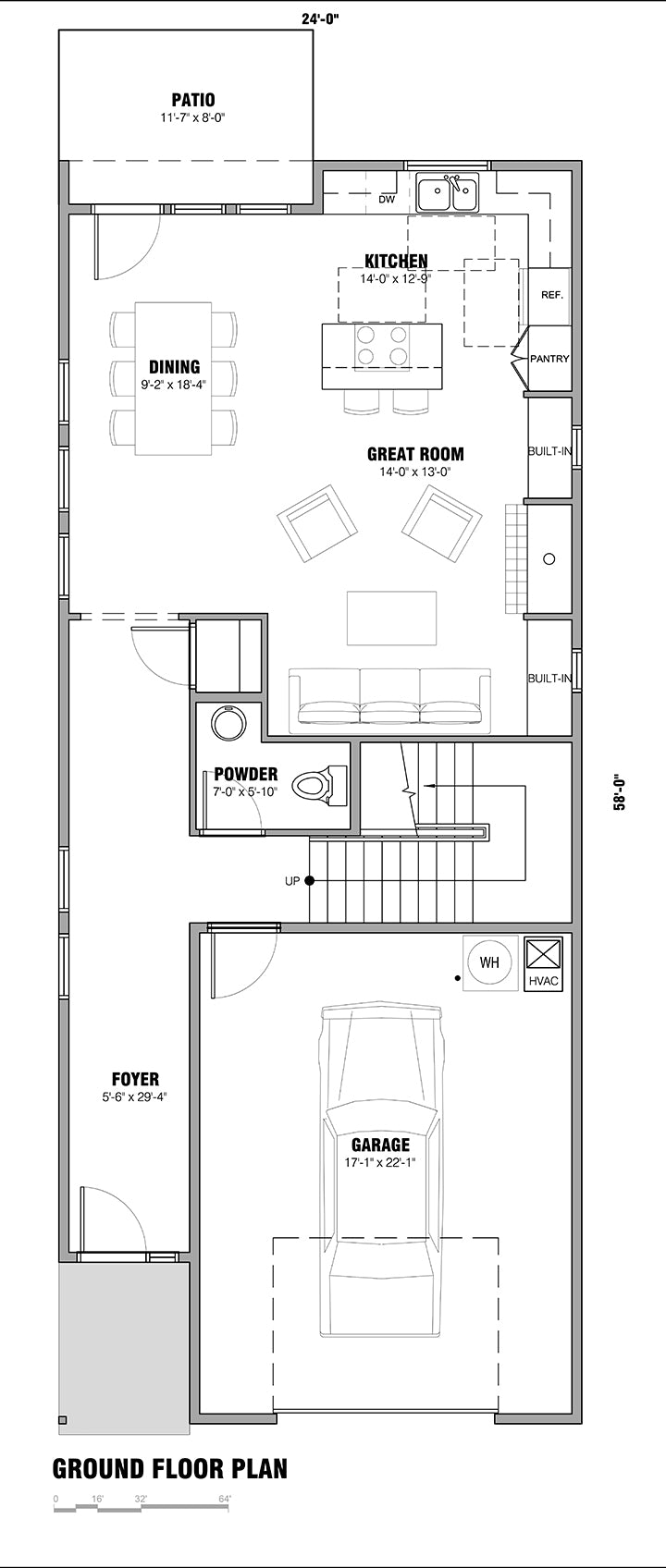

The main level features an open-concept kitchen, dining area, and great room, creating a comfortable central gathering space with direct access to the outdoor patio. A generous kitchen island provides additional seating and workspace, while built-in cabinetry and a walk-in pantry maximize storage. The attached one-car garage, powder room, and long entry foyer make the compact footprint highly functional.

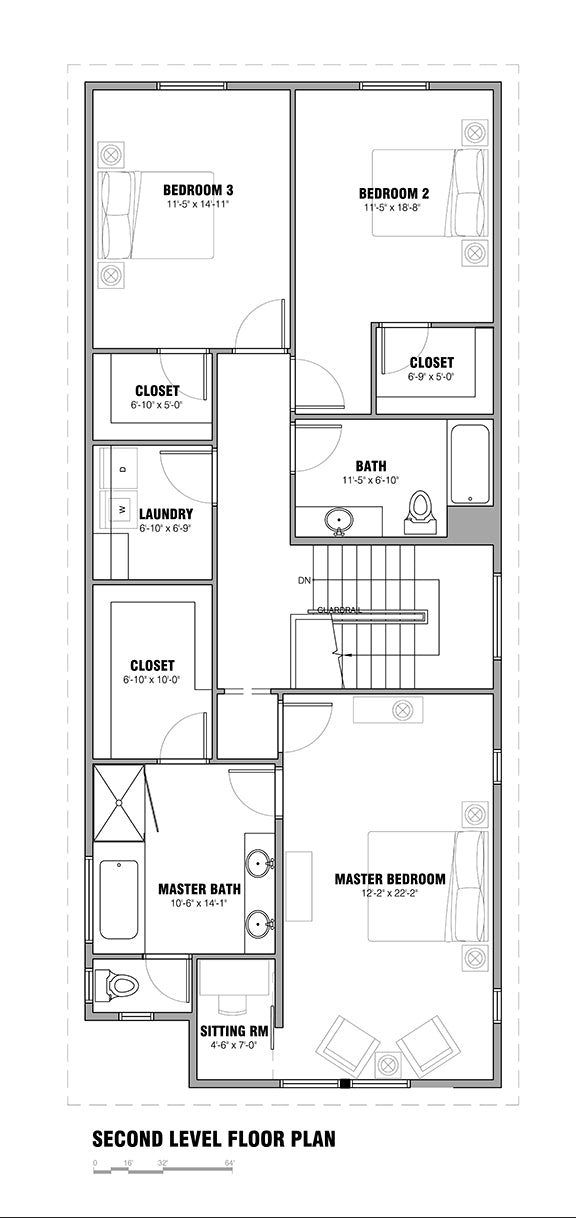

Upstairs, the Irving provides three bedrooms and two full bathrooms, including a spacious primary suite with a private bath, large walk-in closet, and intimate sitting area. Two additional bedrooms each feature generous closets and share a centrally located hall bath. A dedicated second-floor laundry room keeps everyday chores conveniently close to the bedrooms.
Designed to deliver a surprising amount of living space on a 24-foot-wide footprint, the Irving is an excellent choice for infill development, smaller urban lots, and homeowners looking for efficient land use without sacrificing the amenities of a full-size home.
How wide is The Irving Plan?
The primary building volume is 24 feet wide.
How many bedrooms and bathrooms are included?
The plan includes two second-floor bedrooms, two full bathrooms, and one main-floor powder bathroom.
Is this house plan suitable for a narrow lot?
Yes. The 58-foot-deep layout and narrow primary building volume were designed specifically for urban infill lots, small-lot developments, and established neighborhoods.
Does the plan include a garage?
No. The garage-free design prioritizes interior living space and preserves more of the property for landscaping, patios, and outdoor living.
What's Included in This Plan Set
-

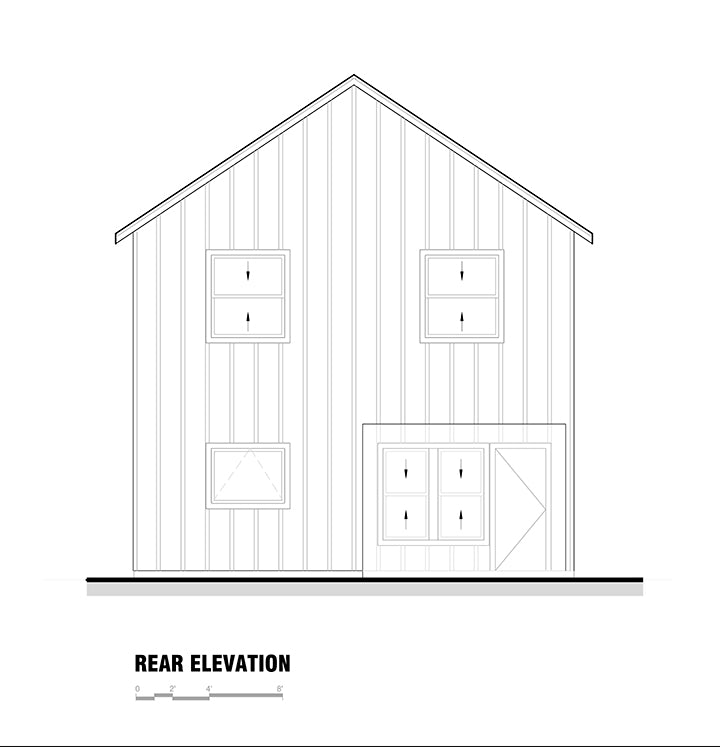

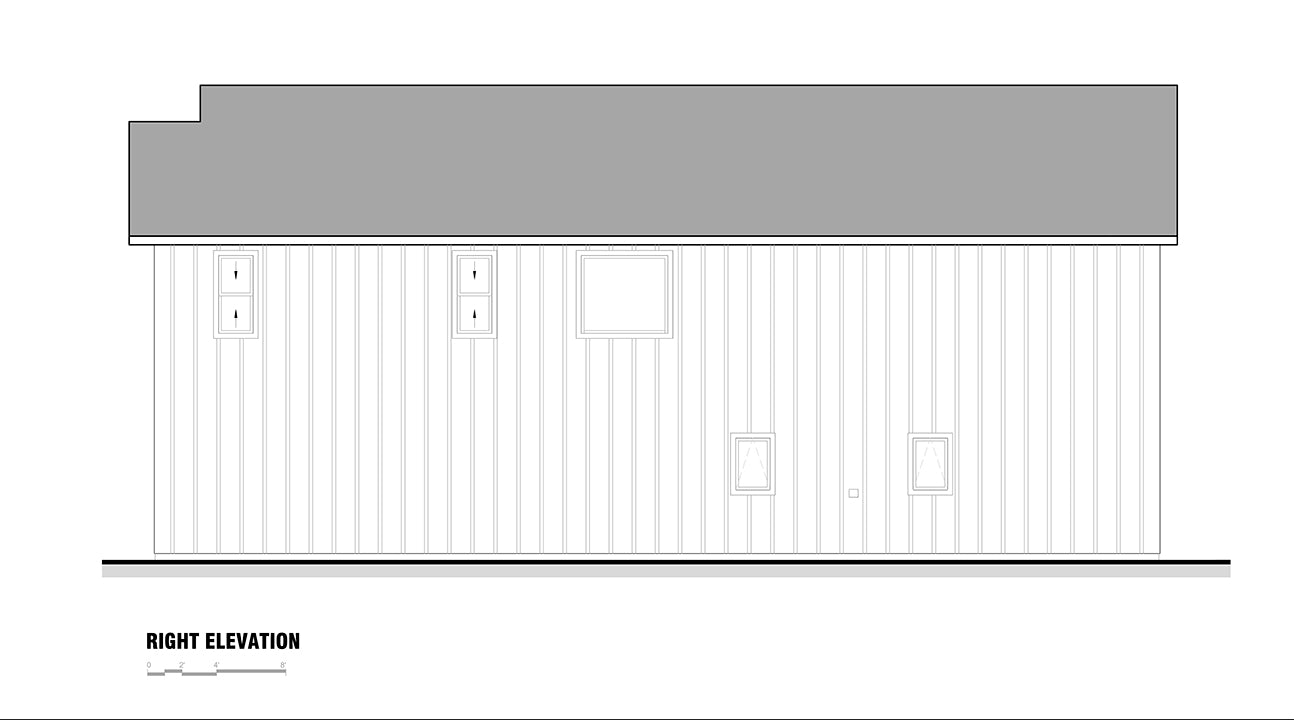

Architectural drawings — Floor plans, elevations, building sections, and roof plan.
-
Structural drawings — Foundation plan, framing plans, and structural details.
-
Electrical layout — Schematic electrical plan for permitting reference.
-
Site plan template — A blank site plan diagram sized for the intended lot width — your surveyor or civil engineer fills in your specific lot data.
-
Energy compliance notes — General energy code compliance notes for most U.S. jurisdictions.
-
Format — Print-quality PDF, delivered immediately at checkout. Files are 24" × 36" sheet size, standard for print shops and permit submissions.
Plan Specifications Table
| Specification | Value |
| Plan Name | The Irving Plan |
| Bedrooms | 3 |
| Bathrooms | 2 full + 1 half |
| Total Living Area | 2,208 sq ft |
| House Width | 24 ft |
| House Depth | 58 ft |
| Stories | 2 |
| Garage | None |
| Foundation Type | Slab on Grade |
| Architectural Style | Modern Farm House |
| ADU Option | Available Add-On |
| Sheet Count | 10 sheets |
| File Format | PDF (print-ready, 24" × 36") |
| License | Single-build license — one permitted structure |
Drawings are delivered digitally via email within minutes of your purchase.
