The Overlook Duplex Plan | 4 Bedroom • 2 Bath
The Overlook Duplex is a three-story, two-unit house plan designed for narrow lots, urban infill, middle housing, and small-scale rental development. Measuring approximately 35'-6" wide by 40'-0" deep, the plan combines two efficiently arranged residences within a compact footprint while giving each unit a private entrance and attached garage.

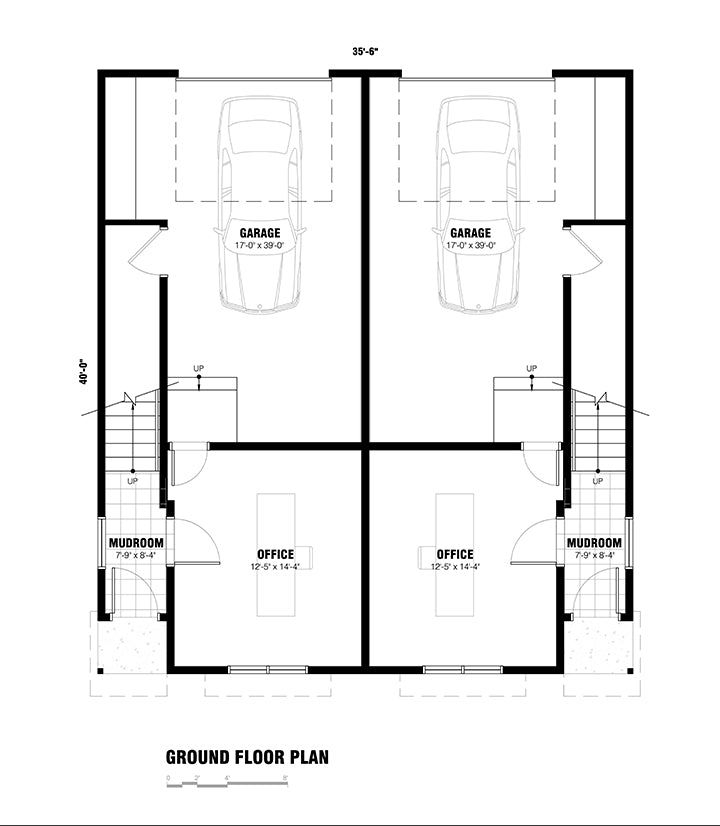

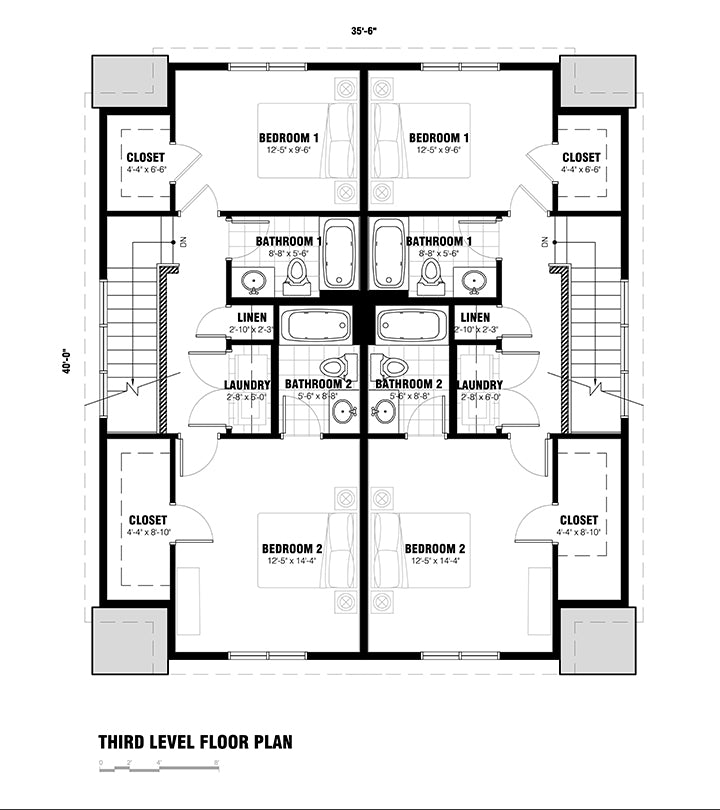

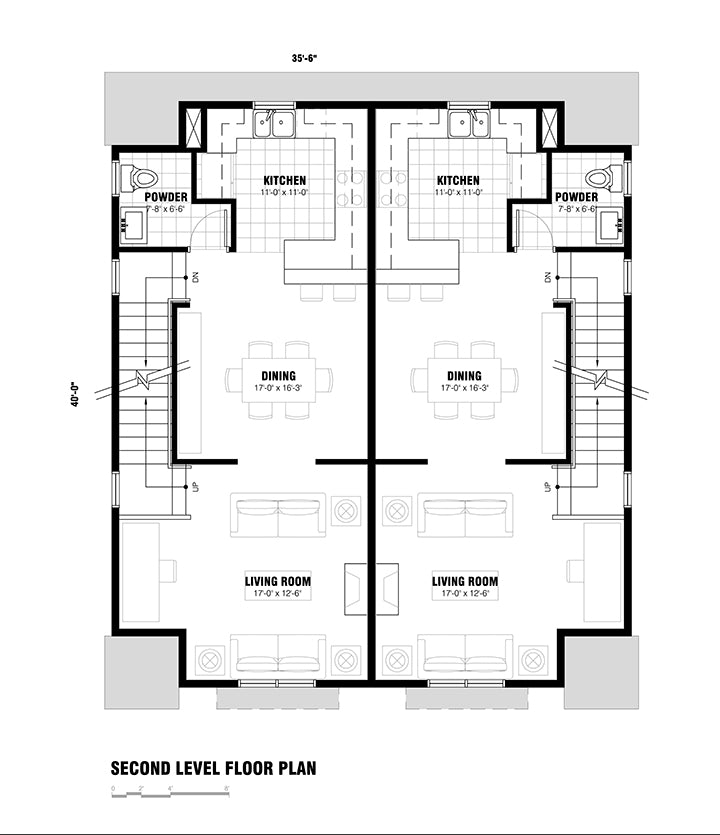

Each residence includes 2 bedrooms, 2.5 bathrooms, a private office, mudroom, laundry, and an attached garage. The ground floor provides a flexible office or work-from-home space near the entry, with direct access to the garage and mudroom. The main living level features an open-concept kitchen, dining room, and living room along with a convenient powder bath. The upper floor contains two bedrooms, two bathrooms, laundry, linen storage, and generous closets.

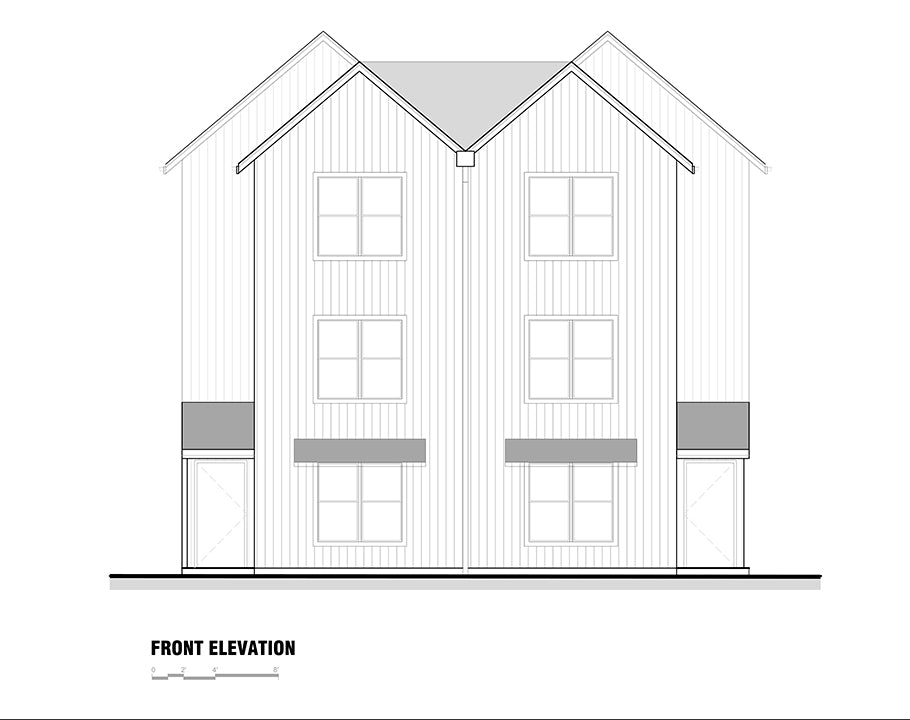

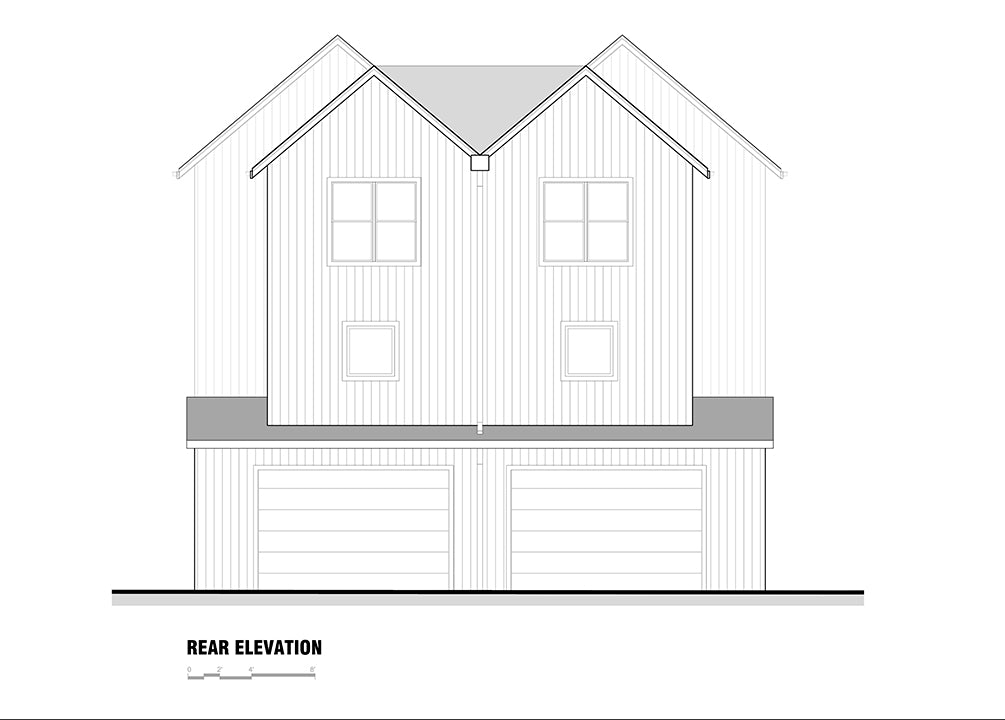

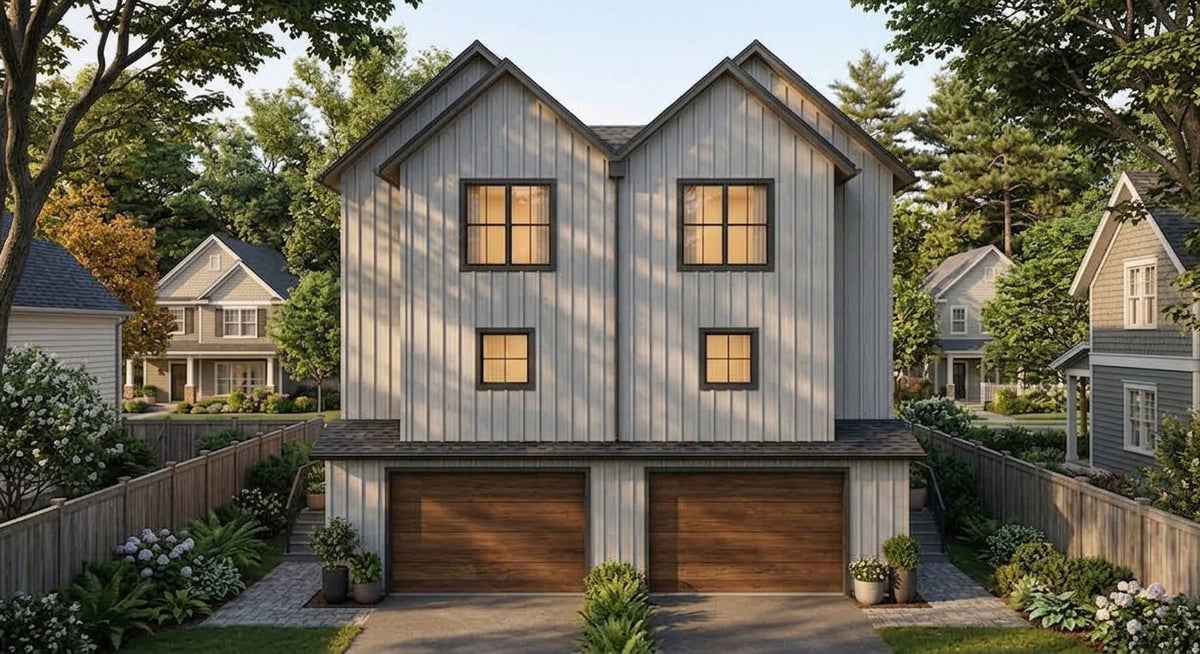

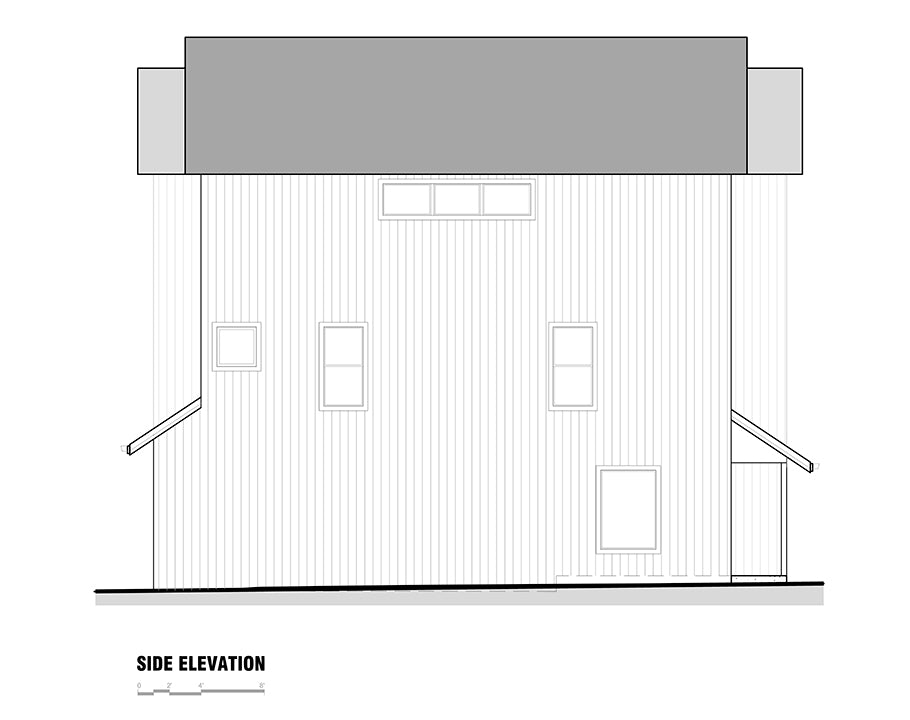

The exterior uses a clean modern farmhouse / contemporary gabled design with vertical siding, simple roof forms, large windows, and individual covered entries. The symmetrical architecture gives the duplex the appearance of two distinct homes while maintaining an efficient shared-wall configuration.
The Overlook is particularly well suited for narrow urban lots, duplex developments, middle-housing projects, rental properties, multigenerational living, and owner-occupied investments where one unit can be occupied and the second rented.
What's Included in This Plan Set
- Architectural Construction Details — Typical wall, roof, floor, foundation, eave, opening, flashing, and other construction details necessary to communicate the design and intended construction.
- Structural Foundation Plan — Foundation layout showing footings, foundation walls, slabs, posts, beams, and other primary structural components.
- Structural Framing Plans — Floor and roof framing information showing joists, rafters, beams, headers, posts, bearing locations, and other structural framing elements.
- Structural Details — Typical structural connections, framing conditions, foundation details, and other information necessary to support construction and permit review.
- Schematic Electrical Plan — Electrical layout showing typical lighting, switches, receptacles, smoke and carbon monoxide alarms, and other common residential electrical locations for permitting and coordination.
- Site Plan Template — A blank site plan diagram sized for the intended lot configuration. Your local surveyor, designer, architect, or civil engineer can use the template to add property lines, setbacks, utilities, topography, driveway locations, and other site-specific information.
- General Construction Notes — Typical construction requirements, material references, installation standards, and code-related notes applicable to the building.
- Energy Compliance Notes — General energy-efficiency requirements and construction notes intended to assist with compliance in many U.S. jurisdictions. Project-specific energy calculations or local compliance documentation may still be required.
- Life-Safety and Code Information — Typical residential code information addressing items such as egress, safety glazing, smoke alarms, carbon monoxide alarms, guards, handrails, and other common code requirements where applicable.
- Door and Window Information — Sizes, types, locations, and related information necessary for coordination and construction, where included in the plan design.
- Drawing Organization — Drawings are professionally organized into a coordinated architectural and structural plan set suitable as the basis for local permit submission. Information will need to be added to meet local compliance.
- Print-Quality PDF Files — High-resolution PDF drawings formatted on 24" × 36" sheets, a standard architectural sheet size accepted by most e-permitting systems and print shops and commonly used for residential permit submissions.
- Immediate Digital Delivery — PDF files are available for download immediately after checkout so you can begin reviewing, pricing, printing, or preparing your project for permitting.
Plan Specifications Table
| Specification | Value |
| Plan Name | The Overlook Duplex |
| Bedrooms | 2 per unit (4 total) |
| Bathrooms | 2 full + 1 half per unit (4 full + 2 half total) |
| Total Living Area | 3,284 sq ft |
| House Width | 35.5 ft |
| House Depth | 40 ft |
| Stories | 3 |
| Garage | 1-Car Attached Garage per Unit / 2 Total |
| Foundation Type | Slab on Grade |
| Architectural Style | Modern Farm House |
| ADU Option | None |
| Sheet Count | 12 sheets |
| File Format | PDF (print-ready, 24" × 36") |
| License | Single-build license — one permitted structure |
Drawings are delivered digitally via email within minutes of your purchase.
All Infill Plans products are digital downloads. Because our plan sets, CAD files, and related documents contain intellectual property that cannot be physically returned once delivered, all sales are final.
Once a digital file has been purchased, accessed, downloaded, or delivered, we are unable to offer returns, exchanges, or refunds. By completing your purchase, you acknowledge that you are receiving digital intellectual property and that the product cannot be “returned” in the same way as a physical item.
We encourage all customers to carefully review the plan description, square footage, included drawings, licensing terms, and product options before purchasing. If you have questions about whether a plan is appropriate for your project, property, or jurisdiction, please contact us before placing your order.
If there is a technical issue with your download, such as a missing file, corrupted file, or incorrect file delivery, we will make reasonable efforts to correct the issue and provide the proper digital files.
Purchase of a plan does not guarantee permit approval. All plans must be reviewed by the local authority having jurisdiction and may require site-specific modifications, engineering, energy code compliance documentation, or review by a licensed professional in the project jurisdiction.
